Woven Wire Test Sieve Cloth
Telas China supplies wire mesh test sieves and fine mesh cloth for sieves, screens and filter uses with a variety of aperture and wire gauges. Sieve Grade woven wire is mainly woven with stainless steel or brass wire materials, for making of lab testing sieves and grading sifters.

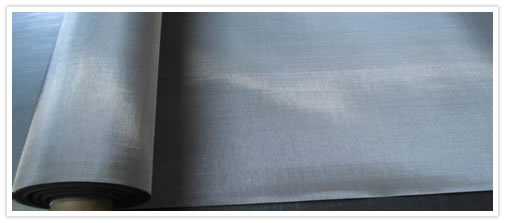

Stainless Steel Sieve Cloth:
Material: SUS 304,304 L 316,316 L
Weaving: Plain woven, twill woven, Dutch woven, reverse woven, etc.
Mesh: 3-635 .
Diameter: 0.025-20(mm).
Application: Sieve cloth is used in screening and sifting in mine, coal, grain, medicine, glass, food, scientific research and other fields.
We can offer wide range of woven wire test sieving cloth according to the configuration of wire thickness in relation to aperture size, as well as type of weaves. Telas sieve cloth can vary in texture from being as fine, soft and flexible as silk to being as rigid as steel plate.
Stainless Steel Type 304/ 304L Test Sieve Mesh is made of an austenitic, non-magnetic economical stainless steel. It resists most oxidizing acid and withstands all ordinary rusting. It is immune to foodstuffs, sterilizing most organic chemicals and dyestuffs and a wide variety of organic chamicals; but it resists poorly halogen acids.
Stainless Steel Type 316/316L is similar to Type 304 but distinguished primarily by the addition of molybdenum which significantly increases its corrosion resistance. Type 316 wire woven test sieving cloth can withstand corrosive attack by sodium and calcium brines, hypochlorite solutions, phosphoric, sulfurous, and acetic acids, and the hostile environment of the body when used for implant.
Mesh |
Wire dia |
aperture |
Opening |
Weight(lb)/ |
||
inch |
mm |
inch |
mm |
|||
100x100 |
0.0045 |
0.114 |
0.0055 |
0.14 |
30.3 |
14.2 |
100x100 |
0.004 |
0.102 |
0.006 |
0.15 |
36 |
11 |
100x100 |
0.0035 |
0.089 |
0.0065 |
0.17 |
42.3 |
8.3 |
110x110 |
0.004 |
0.1016 |
0.0051 |
0.1295 |
30.7 |
12.4 |
120x120 |
0.0037 |
0.094 |
0.0064 |
0.1168 |
30.7 |
11.6 |
150x150 |
0.0026 |
0.066 |
0.0041 |
0.1041 |
37.4 |
7.1 |
160x160 |
0.0025 |
0.0635 |
0.0038 |
0.0965 |
36.4 |
5.94 |
180x180 |
0.0023 |
0.0584 |
0.0033 |
0.0838 |
34.7 |
6.7 |
200x200 |
0.0021 |
0.0533 |
0.0029 |
0.0737 |
33.6 |
6.2 |
250x250 |
0.0016 |
0.0406 |
0.0024 |
0.061 |
36 |
4.4 |
270x270 |
0.0016 |
0.0406 |
0.0021 |
0.0533 |
32.2 |
4.7 |
300x300 |
0.0015 |
0.0381 |
0.0018 |
0.0457 |
29.7 |
3.04 |
325x325 |
0.0014 |
0.0356 |
0.0017 |
0.0432 |
30 |
4.4 |
400x400 |
0.001 |
0.0254 |
0.0015 |
0.37 |
36 |
3.3 |
500x500 |
0.001 |
0.0254 |
0.001 |
0.0254 |
25 |
3.8 |
635x635 |
0.0008 |
0.0203 |
0.0008 |
0.0203 |
25 |
2.63 |
